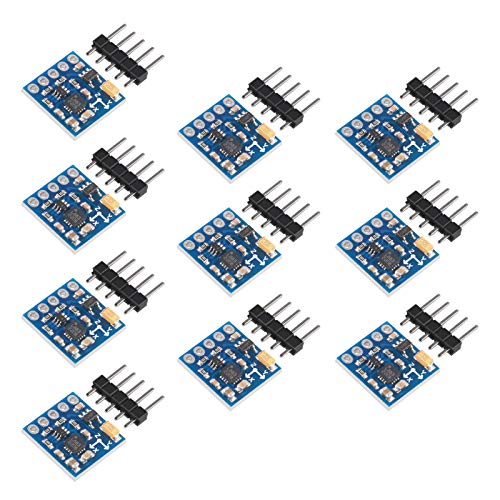

flashtree 10pcs GY-271 QMC5883L Triple Axis Compass Magnetometer Sensor Module 3.3V 5V for Arduino and Raspberry Pi (10PCS)

SKU B09286W4JG


Color: 10PCS


  • Supply voltage range is 3.0~5.5VDC; size: 0.50in×0.56in
  • 16-bit ADC low-noise AMR sensors; 2 milli-Gauss field resolution; <2 degree heading accuracy
  • Simple control via I2C.

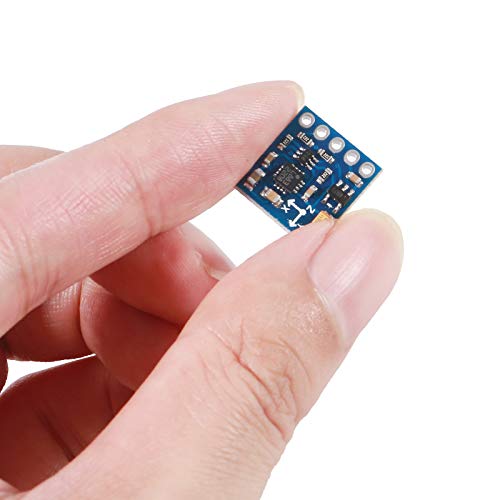

  • Compact and ultra-light compass module.
  • Use as compass sensor, non-contact controller, magnetic impeller flow meter, or linear actuator position sensor

Binding: Electronics

Part Number: GY-271 QMC5883L

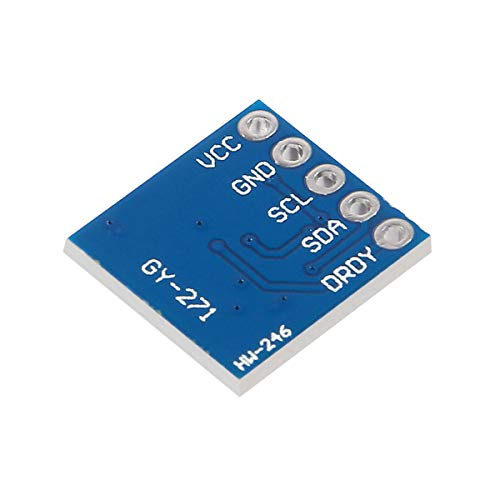

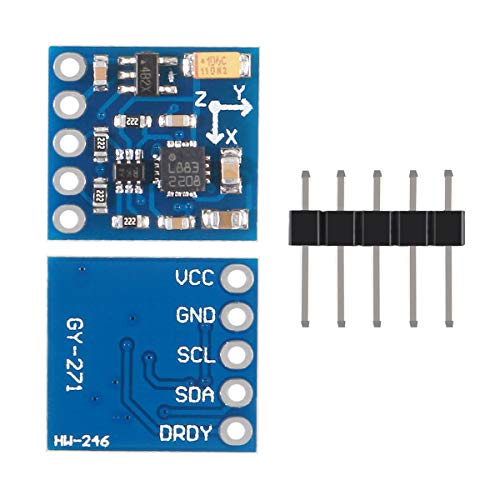

Details: Specification: Name: QMC5883L modules (three-axis magnetic module)  Main Chip: QMC5883L (licensed HMC5883L EOL replacement) Model: GY-271 Use Chip: QMC5883L Power supply :3-5v Communication: IIC communication protocol Measuring range: ±1.3-8 gauss Size: approx. 14*13*4mm Wiring: VCC: supply voltage 3.3V to 5V GND: Ground connection SCL: clock line SDA: Data line DRDY: Data Ready Package Includes: 10*GY-271 QMC5883L Triple Axis Compass Magnetometer Sensor Module

EAN: 0701715465558

Package Dimensions: 6.2 x 4.1 x 1.1 inches
