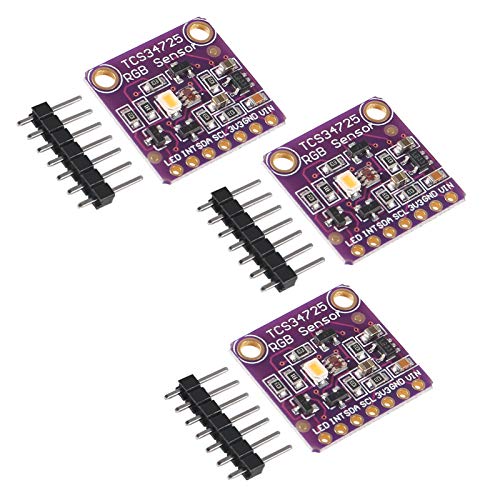

flashtree 3pcs TCS-34725 TCS34725 RGB Light Color Sensor Colour Recognition Module RGB Color Sensor with IR Filter and White LED for Arduino

$12.99
SKU B08L7MS8L4

Brand: AITRIP

Color: 3PCS

Features:

  • Low Power: 2.5-uA Sleep State
  • Strong point: Input Voltage Levels Compatible with VDD or 1.8 V Bus
  • Feature: I2C Fast Mode Compatible Interface
  • Advantage: Data Rates up to 400 kbit/s
  • Widely Applications: RGB LED Backlight Control ; Light Color Temperature Measurement; Product Color Verification and Sorting; Fluid and Gas Analysis; Ambient Light Sensing for Display Backlight Control;

Part Number: EC16986

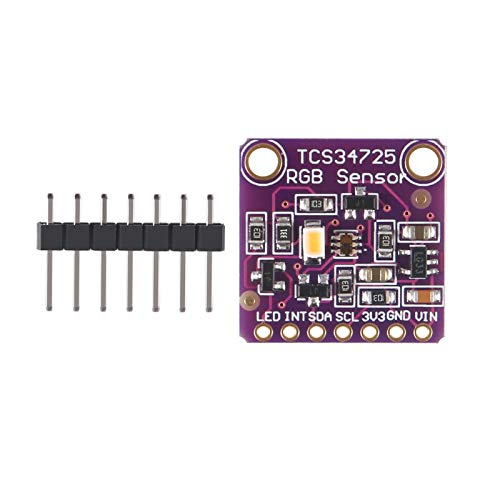

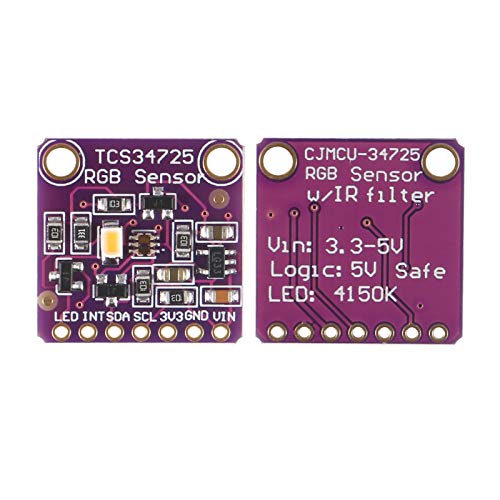

Details: TCS-34725 TCS34725 RGB Color Light Sensor Colour Recognition Module For Arduino Applications:  RGB LED Backlight Control     Light Color Temperature Measurement Product Color Verification and Sorting Fluid and Gas Analysis Ambient Light Sensing for Display Backlight Control Specification: Detection distance: 3-10mm Working Voltage: 3.3 or 5V Low Power: 2.5-uA Sleep State Strong point: Input Voltage Levels Compatible with VDD or 1.8 V Bus Feature: I2C Fast Mode Compatible Interface Advantage: Data Rates up to 400 kbit/s 65-uA wait state with programmable wait state time from 2.4 ms to > 7 Seconds PINOUT: LED = LED control input. Leave floating for LED always on. Pull LOW to turn LED off INT = Interrupt output active LOW. Output is open-collector so requires pull-up resistor. Connects to an interrupt input on the uC if used. SDA = I2C SDA line. Connects to SDA on uC SCL = I2C SCL line. Connects to SCL on uC 3V3 = 3.3V output from the on-board 3.3V regulator GND = Ground connects to ground on the uC VIN = Power input. Connects to 3.3V or 5V on the uC Pack included: 3pcs TCS34725 RGB Light Color Sensor Recognition Module

EAN: 0701715444249

Package Dimensions: 3.2 x 2.3 x 0.6 inches
